Ultimate Guide to Floyd Rose Tremolo Stabilizers: Fixing Tuning Stability and Installing the Trem-Endus

Floating bridges are a double-edged sword. On one hand, you get the dramatic, octave-dropping dives and fluttering vibrato that define classic rock, metal, and shred guitar. On the other hand, you get the frustrating reality of string breakage mid-solo, double-stop tuning drift, and the tedious setup routine required just to change strings. If you have ever fought with a floating bridge while trying to drop-tune on the fly, you are not alone.

This friction is precisely why guitarists turn to hardware modifications. By installing a mechanical stop or zero-return system, you can anchor the bridge back to its exact resting point without sacrificing your ability to pull up on the bar.

The Floating Tremolo Dilemma

To understand why a stabilizer is necessary, look at the physics of a traditional floating system like a Floyd Rose. The bridge floats on a knife-edge pivot, balanced dynamically by a delicate tug-of-war between the string tension pulling from the front and the tremolo springs pulling from the back.

This equilibrium is fragile:

• String Breakage: Break a high E string, and the remaining tension drops instantly. The springs pull the entire bridge backward, sending every other string sharply out of tune.
• Bending Notes: When you bend a string, you increase its tension, which momentarily forces the bridge plate to tilt forward. This causes any unbent strings to drop in pitch.
• Palm Muting: Heavy palm muting exerts downward pressure on the bridge, inadvertently raising the pitch of open strings.

How a Tremolo Stabilizer Works

A tremolo stabilizer (sometimes called a zero-point system or trem stopper) introduces a mechanical counter-force or physical block into the guitar's rear spring cavity. Instead of relying purely on spring equilibrium, the device uses a small adjustable plunger, brass claw, or spring-loaded rod to pin the block at absolute zero.

When you push down on the whammy bar, the stabilizer disengages smoothly against its own internal tension or lets the block move forward. But the moment you release the bar, the stabilizer guides the bridge straight back to its exact zero position, preventing overshoot and eliminating tuning drift from bends or string breaks.

Deep Dive Into the Floyd Rose Trem-Endus

Among the aftermarket options available, the Floyd Rose Trem-Endus stands out for its versatility and refined engineering. Unlike rigid brass blocks that completely lock a tremolo into a hardtail configuration (destroying your ability to pull up), the Trem-Endus allows you to retain traditional floating functionality while adding reliable resistance.

• Compatibility: Designed to fit standard Floyd Rose systems, as well as many licensed variants, Fender synchronized tremolos, and Ibanez Edge blocks inside standard guitar routing cavities.
• Adjustability: Features fine-tuning thumbwheels that let you dial in precisely how much resistance you want the return to have.
• Drop-Tuning Friendliness: By stabilizing the zero point, it drastically minimizes the cascading tuning adjustments required when switching your low E to Drop D.

Read more about: Tremolo Stabilizer: The Complete Guide to Traditional Tremolo Stabilizers and the SuperVee Maglok

Step-by-Step Installation Guide

Installing a stabilizer requires basic workbench skills and a screwdriver.

1. Prep the Guitar: Remove the backplate cover of your electric guitar and place the instrument securely on a padded workbench.
2. Align the Unit: Position the stabilizer bracket inside the spring cavity. Most units mount directly to the wood wall of the cavity or share screw points with the existing tremolo claw. Ensure the plunger or rod makes flat, centered contact with the flat face of the sustain block.
3. Secure the Mounting Screws: Mark your pilot holes lightly if drilling is required, then screw the bracket firmly into place. Do not over-tighten into soft mahogany or alder body wood.
4. Calibrate Tension: Adjust the thumbwheel or internal spring tension until the stabilizer gently holds the block at the neutral resting point. Test the whammy bar action: you should feel a slight, reassuring resistance right at the center point, followed by smooth travel in both directions.
5. Re-string and Test: Put on a fresh set of strings, stretch them thoroughly, lock the nut, and perform aggressive double-stop bends to confirm that the bridge returns cleanly to pitch without wavering.

Pros and Cons of Adding a Stabilizer

• Pros: Rock-solid tuning stability during string bends, effortless drop-tuning adjustments, prevention of catastrophic pitch drops if a string snaps, and retained pull-up tremolo range.
• Cons: A slightly stiffer feel on the whammy bar, minor dampening of overall sustain in some setups, and the loss of the ultra-loose "flutter" effect prized by extreme shredders.

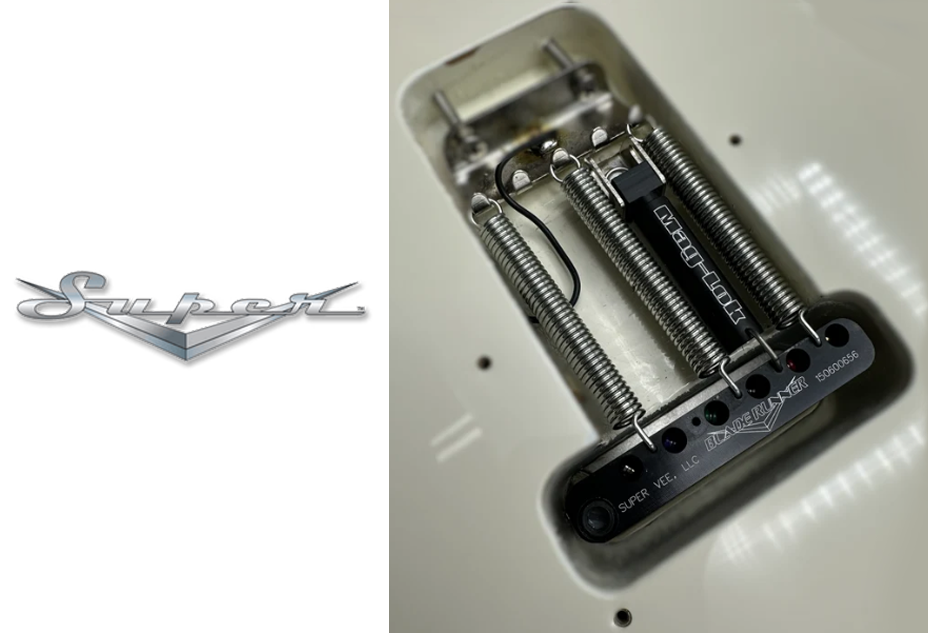

For players looking for alternative hardware solutions that achieve similar stability goals without modifying the internal spring cavity, brands like SuperVee offer innovative bridge-mounted and internal stabilization systems tailored to modern performance demands.
